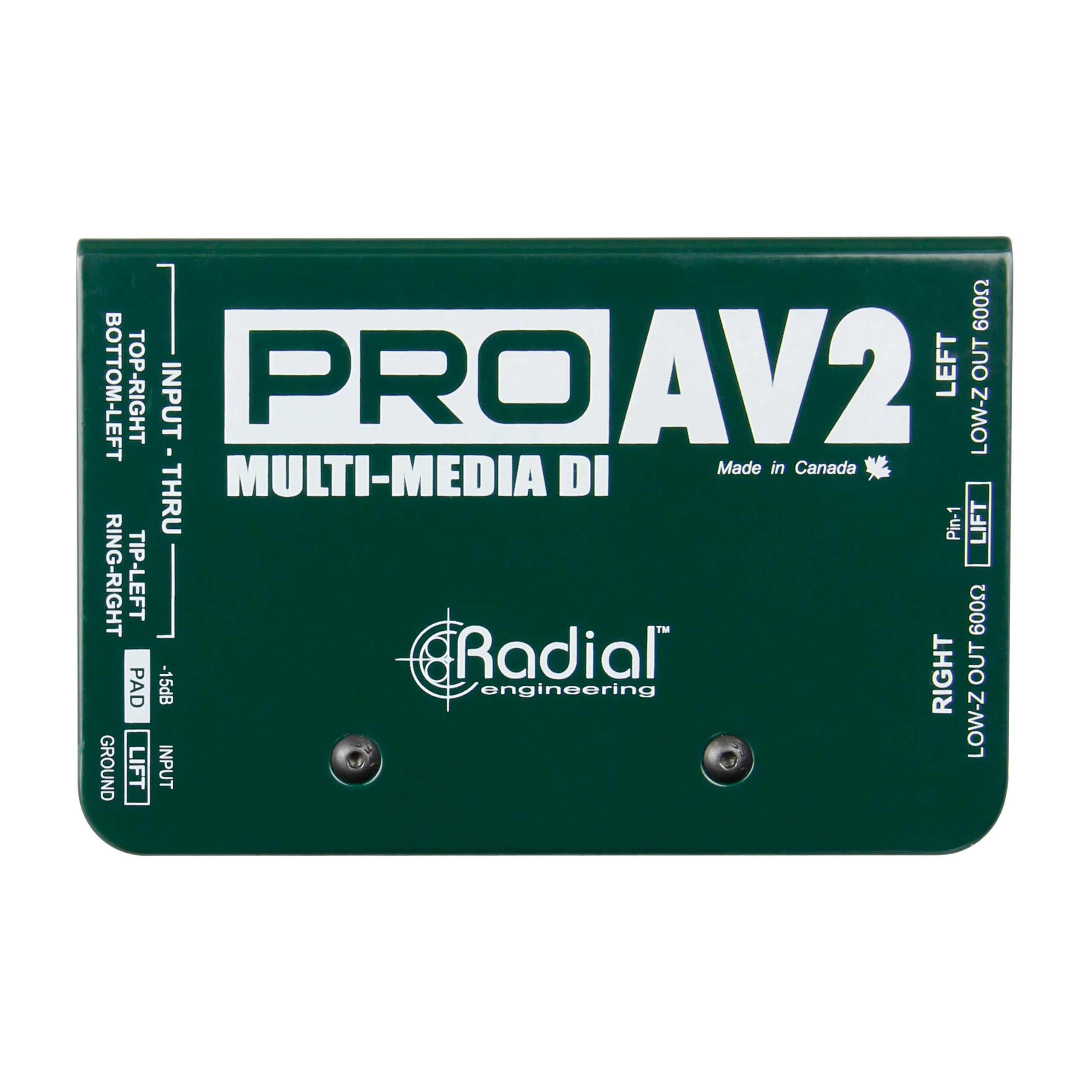

Radial Engineering ProAV2 Stereo Passive Multimedia Direct Box
Connect any device to the PA system
The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system. A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
- Versatile stereo direct box for multimedia applications
- Easy to use, ultra-quiet passive design
- Transformer isolation eliminates hum and buzz
- Handles huge transients without distortion
Specifications
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB2, 12:1 ratio
Number of channels: Dual channel (stereo)
Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range: 128dB
Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +18dB @ 20Hz
Features
Ground lift
Input Connectors: 1/4", RCA, 3.5mm TRS
Output Connectors: XLR
General
Construction: 14-gauge steel chassis & shell
Size (L x W x D): 3.25” x 5” x 1.875”
Weight: 0.82kg / (1.8lbs)
Shipping size (L x W x D): 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
Shipping weight: 1.2 kg (2.60 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
Part no: R800 1115 00
Original: $229.99
-65%$229.99
$80.50Radial Engineering ProAV2 Stereo Passive Multimedia Direct Box
Connect any device to the PA system
The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system. A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
- Versatile stereo direct box for multimedia applications
- Easy to use, ultra-quiet passive design
- Transformer isolation eliminates hum and buzz
- Handles huge transients without distortion
Specifications
Audio circuit type: Passive, transformer based
Transformer: Eclipse ET-DB2, 12:1 ratio
Number of channels: Dual channel (stereo)
Frequency response: 20Hz ~ 18.5KHz (± 0.2dB)
Dynamic range: 128dB
Total harmonic distortion: 0.01% from 20Hz~20kHz @-10dB
Phase Deviation: 1° @ 100Hz; 8° @ 20Hz
Input Impedance: 140k Ohms, unbalanced
Output Impedance: 150 Ohms, balanced
Maximum Input: +18dB @ 20Hz
Features
Ground lift
Input Connectors: 1/4", RCA, 3.5mm TRS
Output Connectors: XLR
General
Construction: 14-gauge steel chassis & shell
Size (L x W x D): 3.25” x 5” x 1.875”
Weight: 0.82kg / (1.8lbs)
Shipping size (L x W x D): 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
Shipping weight: 1.2 kg (2.60 lbs)
Power: Passive, no power required
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
Part no: R800 1115 00
