Godlyke Power-All System C-5/R 5-Connector Right Angle Daisy Chain Cable Black

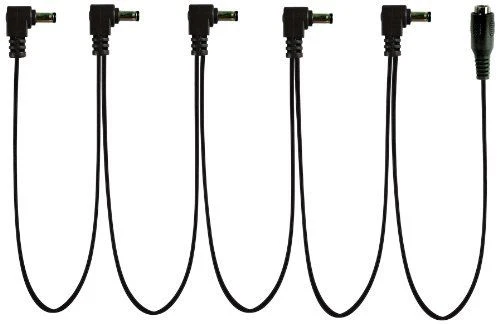

The Power-All Cable-5/R Daisy Chain allows the user to connect up to five pedals in series to a single power source.*
The C-5/R offers the following features:
- 1 x Female Barrel jack to connect to Power-All or other power source (C-M/M & C-BL Cable may be required to connect C-5/R to brick-style power supplies)
- 5 x right-angle Male Barrel plugs to connect to pedals or other cables
- Spring-loaded male plugs to reduce chance of disconnection
- 26-gauge Cable with oil-resistant vinyl sheath
- 10.5” (approx. 264 mm) Cable length between plugs
- NEW Lo-Pro™ Plug design offers the smallest plug dimensions possible in order to save space on your pedalboard and to make connection to your pedals quick, easy and efficient
SPECIFICATIONS:
- Female Barrel Jack (1): 5.5 mm O.D.; 2.1 mm I.D.
- Male Barrel Plugs (5): 5.5 mm O.D.; 2.1 mm I.D.; 10 mm barrel length
- Cable: 26-gauge, OFC with oil-resistant vinyl sheath
- 10.5” (approx. 264 mm) Cable length between plugs
TIPS:
- Output polarity of C-5/R’s Male Barrel Plugs will match output polarity of power supply connected to Female Barrel Jack (i.e. if Power Supply is tip-negative, then C-5/R outputs will all be tip-negative)
- Connect C-M/M Cable to C-5/R’s Female Barrel Jack to connect to brick-style power supplies or other sources with Female Power Output Jacks
- Connect additional Daisy-Chains to C-5/R’s last male Barrel Plug to power additional pedals*
- Connect Cable-Red to female jack of C-5/R to reverse the output polarity of all male plugs
- Connect Cable-Red to male plug on C-5/R to reverse the output polarity of that plug
- Use C-Cap to cover unused male Barrel Plugs & prevent short-circuits
NOTE:
All effect units to be powered should have the same ground configuration to-chassis. Effects with different ground configurations cannot be powered off the same PA-9 unit without using the Ground Hound ground isolator unit (sold separately).
