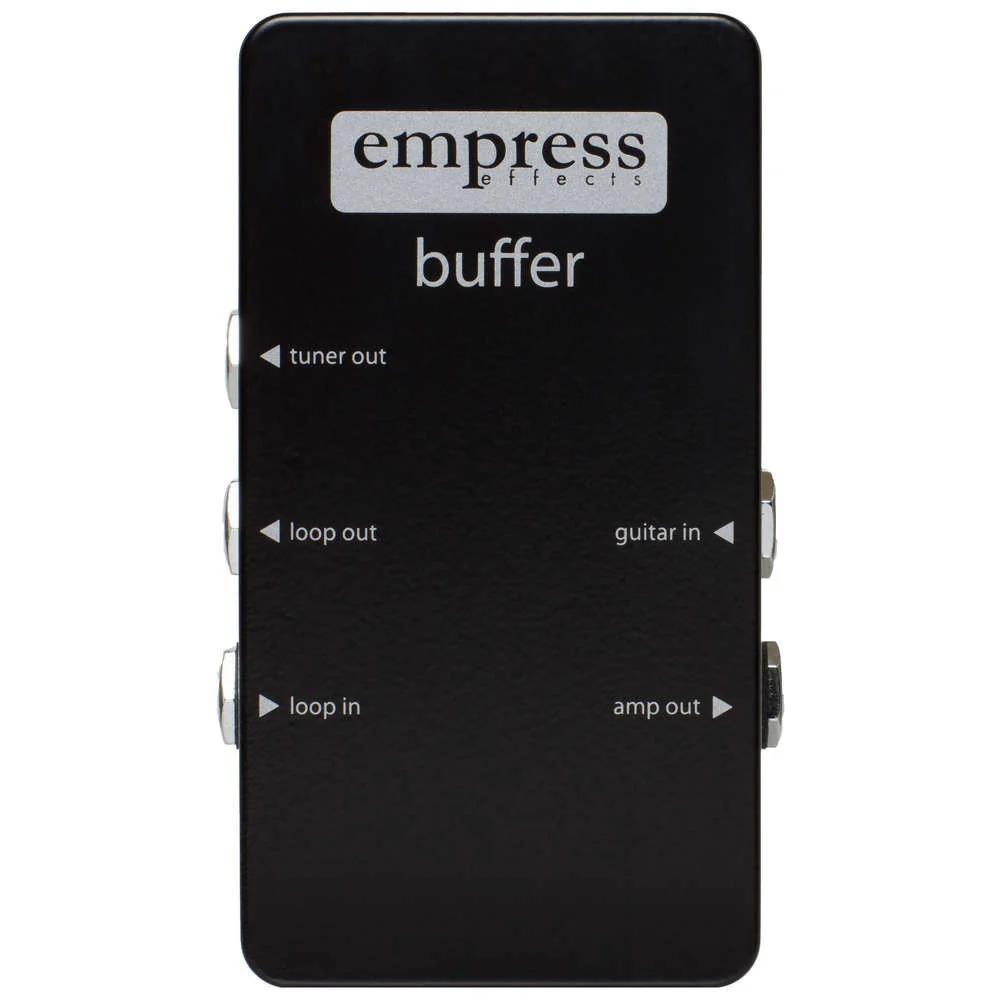

Empress Effects Buffer Guitar Effect Pedal

Overview

The Empress buffer was designed to be the complete I/O interface for the pedal board, while maintaining the highest fidelity to your guitar's signal.

Signal loss due to long, un-buffered cable runs is an issue that has plagued guitar players for decades. The primary goal of the buffer is to eliminate this signal loss, ensuring that your tone is unchanged by your cables.

Additionally, all the connectivity of your pedal board is consolidated to make set up quick and easy.

Features

• All Analog Signal Path - no digitals in here!
• Small Size - The enclosure measures approximately 4.5" by 2.5" by 1.5", which is delightfully small when considering all the features packed into this unit.
• Tuner Out - Separate tuner output keeps your tuner out of the audio path.
• Flat Top - Velcro your tuner to the top and you won't use any pedalboard real estate at all.
• Complete I/O - All the connections to your pedalboard consolidated in one place. Makes setup and teardown quick and easy.

• Specifications

  Input Impedance	1Meg
  Output Impedance	510 Ω
  Frequency Response (-3dB)	5Hz - 40kHz
  Power Input Voltage	9V DC (Negative tip)
  Power Input Connector	2.1mm barrel connector (Negative tip)
  Power Consumption	~ 42mA
  Total Harmonic Distortion	0.02%
  Signal to Noise Ratio	105.3dB
  Headroom	+9.4dBu
  Enclosure Material	Die Cast Aluminum
  Input connectors	1/4" Jack
  Output connectors	1/4" Jack
  Height	1.25"
  Length	4.5"
  Width	2.5"
  Weight	0.5 lbs
