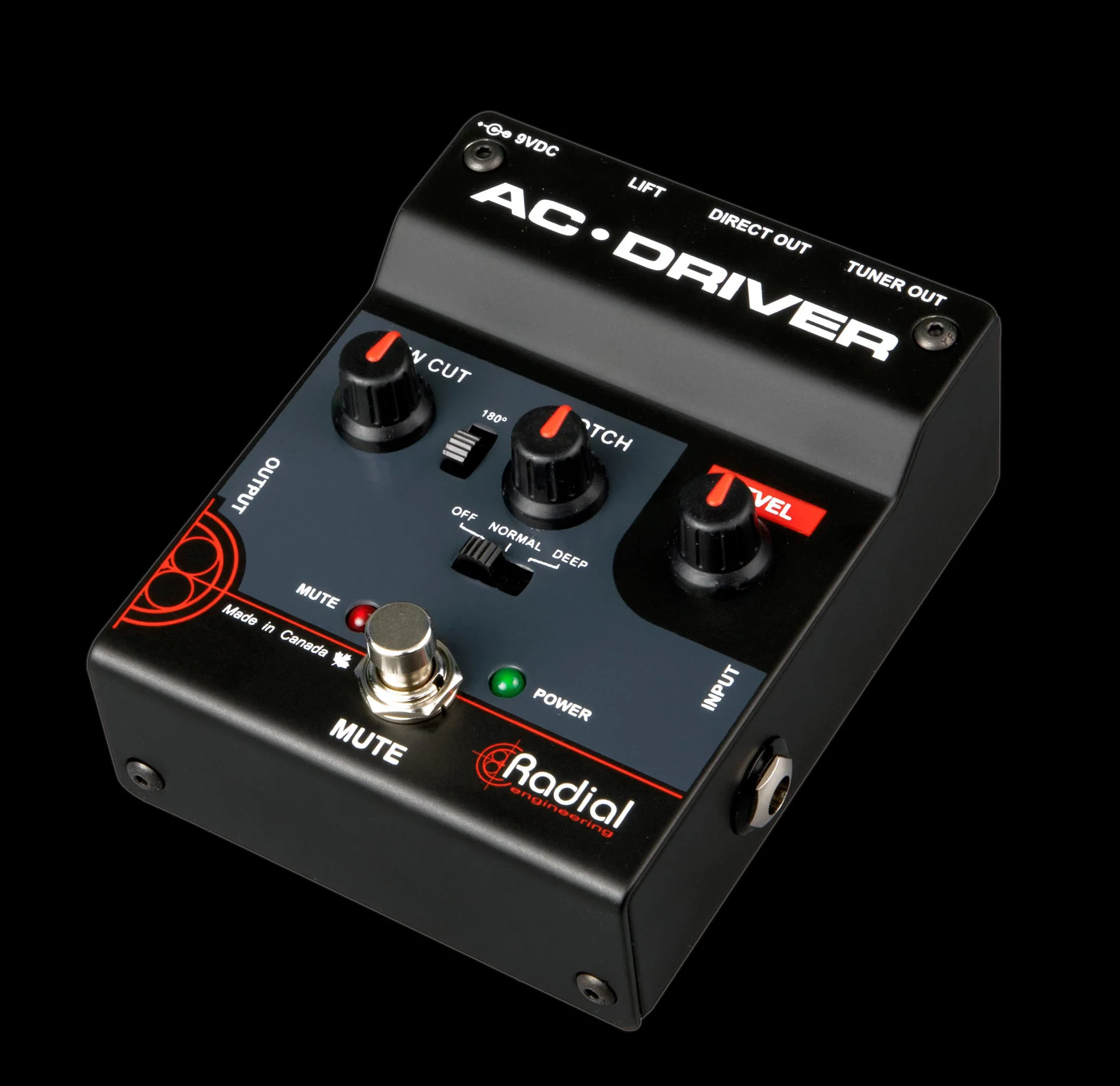

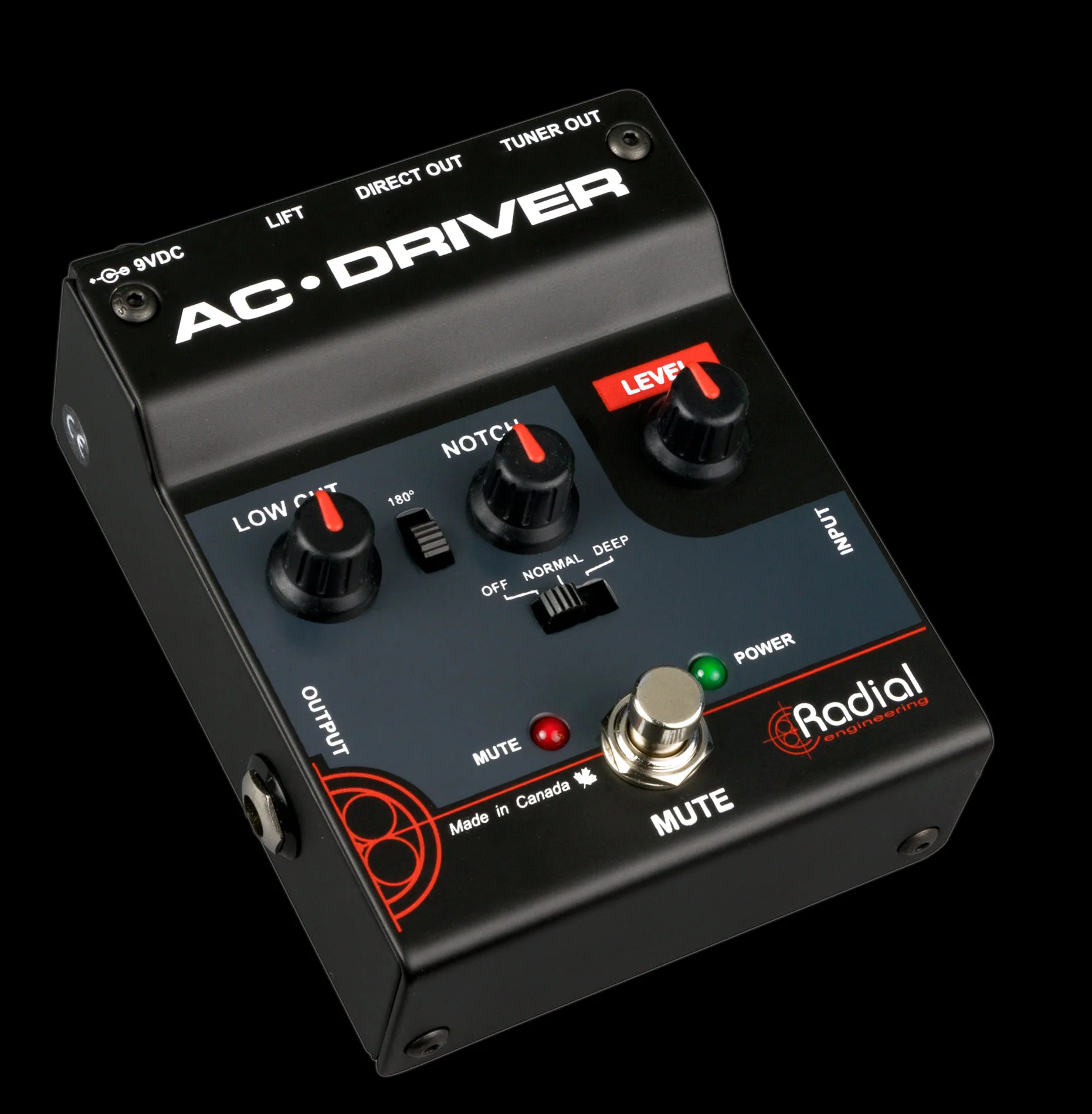

Radial Engineering AC Driver Compact Acoustic Preamp Guitar Pedal
Compact Acoustic Preamp
The AC-Driver is an acoustic instrument preamp designed for use on stage, with helpful features to streamline your performance and ensure the best possible tone from your instrument.
Great tone can be simple
Allows you to obtain great sounding results in a short amount of time, with powerful easy-to-use controls that allow you to set your levels and reduce on-stage feedback. An adjustable low cut filter removes excessive low frequencies, while a 180° phase switch helps correct feedback build-up from hot spots on stage. A variable notch filter targets and removes specific problem frequencies, and a mute footswitch provides a way to silently tune on stage or change instruments without any popping or noise in the PA.
Specifications
Audio circuit type: Class-A FET
Dynamic range: \=+107dBu
Input Impedance: 10 MΩ
Output Impedance: 4.4kΩ
Noise Floor: -97dBu
Maximum Input: \=+10dBu
Features
180° polarity reverse, Ground lift, Level Control
Input Connectors: 1/4"

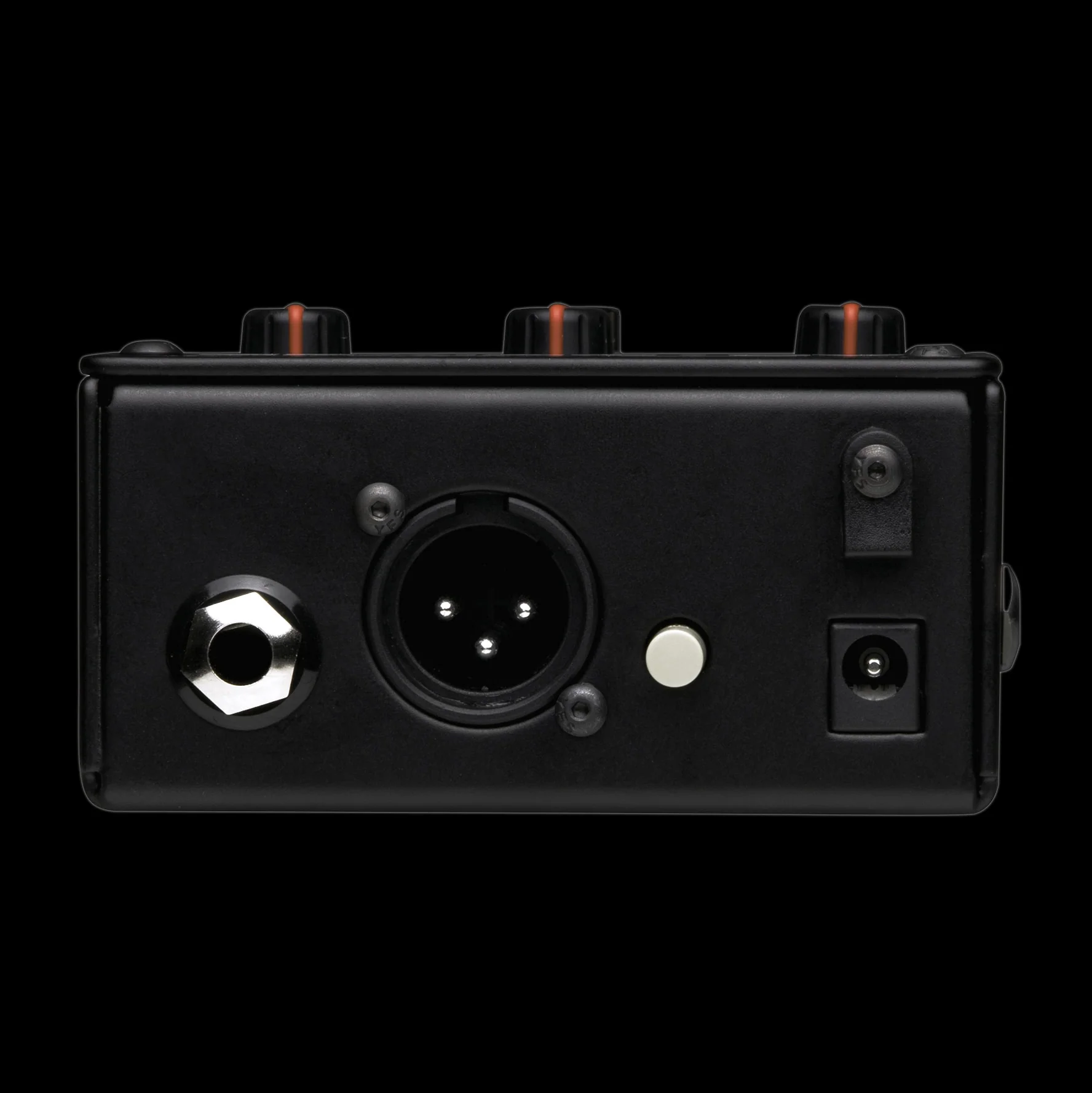

Output Connectors: 1/4", XLR
General
Construction: 14-gauge steel chassis
Size (L x W x D): 4.75" x 3.75" x 1.75" (12.06 x 9.5 x 4.5cm)
Weight: 1.4lbs (0.63kg)
Shipping size (L x W x D): 6.25" x 4.25" x 3" (15.8 x 10.8 x 7.6cm)
Shipping weight: 1.7lbs (0.77kg)
Power: 40mA, 9VDC (center pin negative)
Conditions: For use in dry locations only between 5°C and 40°C
Warranty: Radial 3-year, transferable
Original: $219.99
-65%$219.99
$77.00More Images
